Hydraulic & Pneumatic
Sealing Elements.
Rod seals, piston seals, wiper seals, guide rings and buffer rings for hydraulic and pneumatic cylinders. Standard and custom profiles in NBR, FKM, PTFE and polyurethane.
The seal arrangement determines cylinder service life.

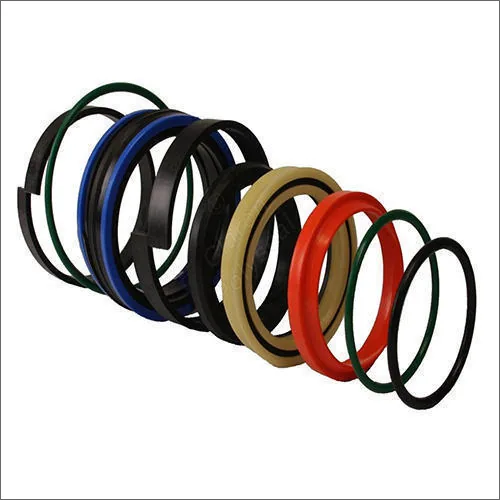

A hydraulic or pneumatic cylinder relies on a coordinated set of sealing elements — rod seal, piston seal, wiper, guide ring and buffer. Each element has a specific function. Selecting the wrong profile or compound for any one of them compromises the whole arrangement.
Santoo supplies the complete cylinder seal kit from stock and to custom specification. NBR 70/90 for general hydraulic service. Polyurethane for high-pressure and dynamic applications. FKM for elevated temperature and chemical resistance. PTFE for low-friction and dry-running service.

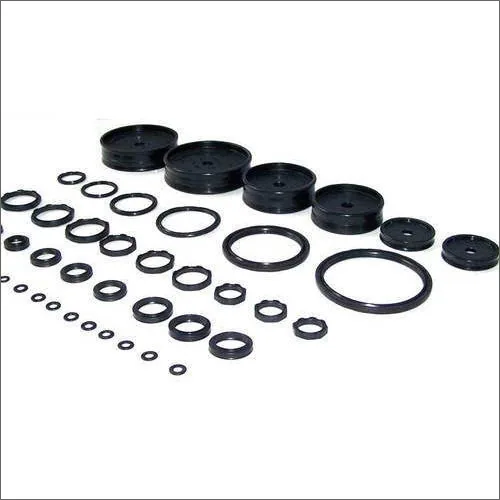

Seal types and profiles.
| Rod seals | U-cups, hat seals and integrated rod seal profiles — dynamic sealing against the rod |
| Piston seals | Single and double-acting piston seals — pressure containment across the bore |
| Wiper seals | Excluder wiper rings — prevent ingress of contamination on rod retraction |
| Guide rings | PTFE and filled-PTFE guide rings — maintain rod and piston alignment |
| Buffer rings | Absorb pressure peaks upstream of the rod seal |
| Materials | NBR 70/90 · Polyurethane · FKM · PTFE · HNBR |
Where these elements are specified.
Hydraulic cylinder rebuild and manufacture across oil and gas, marine and port handling, heavy construction plant, cement and aggregate, steel production and mobile equipment throughout the GCC.
Common questions.
What seal types are available?
Rod seals, piston seals, wiper seals, guide rings and buffer rings — the complete cylinder seal arrangement.
What materials are used?
NBR, FKM, PTFE and polyurethane. Compound selected to match fluid, temperature and pressure.
Can seals be supplied to non-standard dimensions?
Yes. Custom profiles cut from raw stock. Reverse engineering from worn components available.
